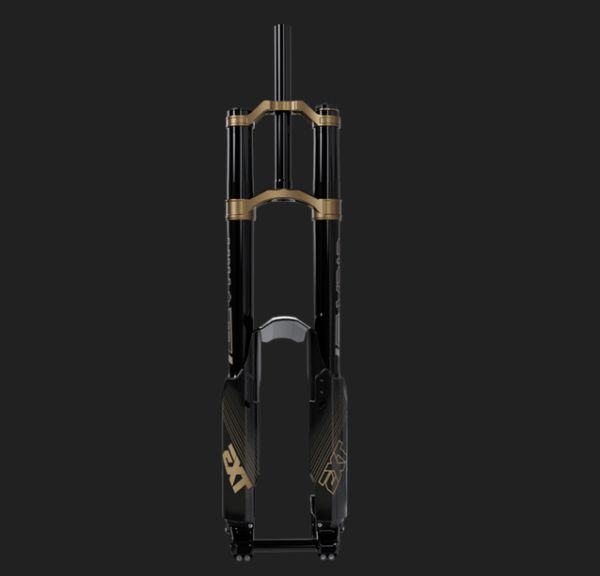

EXT Vaia 170-180-190-200mm downhill and enduro fork

Beschreibung

please choose Travel: 170mm / 180mm / 190mm /200mm

please choose crown: FLAT crown / DROP crown

please choose axle: 15mm / 20mm diameter

Please send info about BIKE, RIDER WEIGHT, RIDER STYLE. The fork will be adjusted for your personal setup!

• Built entirely in 7075 and 7050 T6 alloy and Grade 5 Titanium
• Tapered 38.5 stanchion tubes optimize the strength to weight ratio, offered with our proprietary surface finish
• Floating bushing system design with an impressive overlap (240 mm around SAG position) with 200 mm travel, ensuring consistent sensitivity and torsional stiffness for riding precision while braking and cornering
• Adjustable high/low speed compression and rebound cartridge with low friction seals, high dynamic response valves and turbulent flow, assures performance in extreme working conditions
• HS3 air cartridge unit with 2 independent positive air chambers as well as an innovative negative chamber with a tunable volume design for increased sensitivity and adjustability
• Pressure release bleed buttons to release air on both fork legs
• Optimized inner volume design ensures maximum lubrication for sliding bushing systems
• Unique double crown design offers 2 offsets, from 44 to 48 mm, enhancing personal adjustment on steering geometry without having to purchase additional crowns
• Available with interchangeable 20 mm and 15 mm Grade 5 Titanium wheel axles for both maximum stiffness and rigidity
• Dedicated stanchion protection with available bolt on fender
• Weight: 3195 gr (in 200 mm travel with 20 mm wheel axle, cut steerer tube, oil included)
