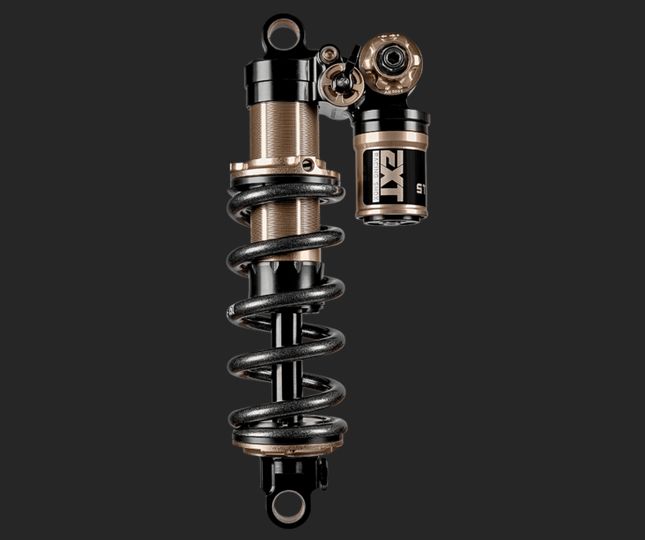

EXT Storia V4 coil shock standard and trunnion mount

Beschreibung

please choose dimensions (length and stroke) for any trunnion and standard mount

please tell us your BIKE, RIDER WEIGHT and RIDER STYLE, the fork will be adjusted to your personal setup!!

coil spring is not included!!

• 4 way adjustable (LSC-HSC-LSR-HBC)
• Unique patent pending PSR technology to avoid harsh top-out while improving bike platform stability
• New externally adjustable HBC Technology: no more bottom-out
• Allen key adjuster for both high and low compression valve
• LOK 2.0: optimized for every trail section
• High turbolent flow valves: no risk of cavitation
• Ø14 mm high strength chrome steel shaft with DLC ultra-low friction surface coating to increase durability
• Spring Thrust Bearings to improve straight alignment in case of spring side-load conditions
• Reservoir with large volume bladder design and very low reservoir pressure (55PSI) for maximum sensitivity
• New high viscosity index EV2S fluid developed throughout our off-road motorsport experience
• 30% lighter steel spring, designed from motorsport and tested to perform over 500,000 cycles
• Unique frequency dependent 1 way valve for best ride quality on rough terrain
• Wider and improved adjustment range with more defined sensitivity
• Weight: 397 gr. (210×55 mm. Standard mount – without spring)

available METRIC STANDARD:
210 / 47.5 mm
210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5 mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 67.5 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm

available METRIC TRUNNION:
185 / 47.5 mm
185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 67.5 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm
