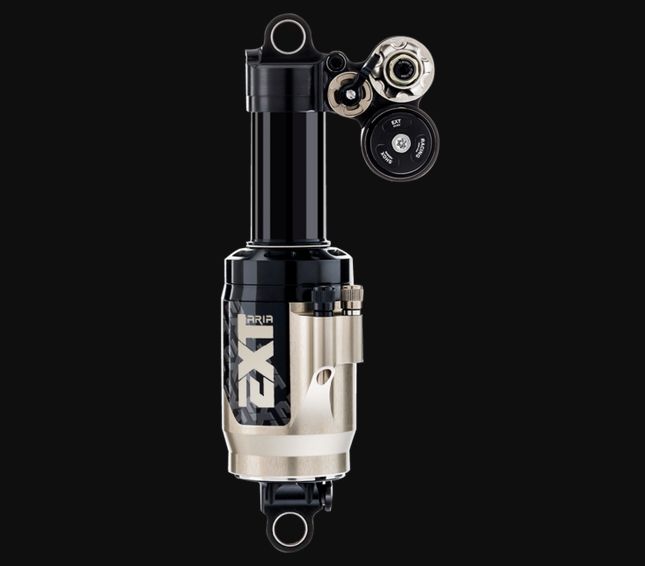

EXT Aria air shock standard and trunnion mount

Beschreibung

please choose dimensions (length and stroke) for any trunnion and standard mount

please tell us your BIKE, RIDER WEIGHT and RIDER STYLE, the fork will be adjusted to your personal setup!!

• AS3 technology: the dual positive chamber featuring only 2 dynamic seals to separate the 3 different chambers. (EXT unique patented design)
• Positive chamber +/++ (low/high) with endless adjustment potential via 2 separate air valves to finetune the spring characteristics
• Negative self-activating large volume chamber
• Unique air seals design based on aerospace technology
• Lok 2.0 technology
• 14 mm superlight weight internal shaft
• Large 28mm hydraulic main piston
• Adjustable Hydraulic Bottom-Out Circuit (HBC)
• Proprietary “Super Finish” surface treatment on sliding parts

available METRIC STANDARD:
210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 67.5 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm

available METRIC TRUNNION:
185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 67.5 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm
