Technical Details:
- Avinox M1 Motor (2.52 kg, 850W peak power, 105Nm torque, Auto Eco Trail Turbo and Boost Mode)
- Enhanced Frame Stiffness (monocoque Technology, continuous reinforcements at critical junctions, weight only 2.37kg)

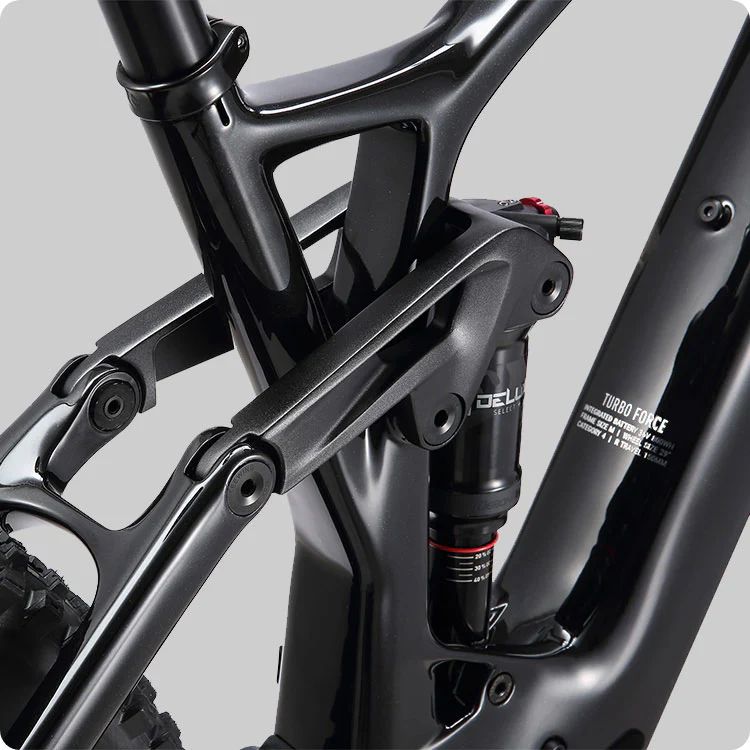

- Advanced Four-Bar Linkage
- Optimized Frame Geometry (445mm chainstay, 77-deg seattube angle, 64.5-deg headtube angle)
- Smart Touchscreen Control (OLED touchscreen with automatic brightness)
- GaN 3x Fast Charging (max rate of 508W, charges 800Wh battery from 0% to 75% in 1.5 Hours)
- Lightweight, High-Capacity Battery (Avonix's 800Wh battery with 3.74 kg lightweight, with range of up to 157 km!)

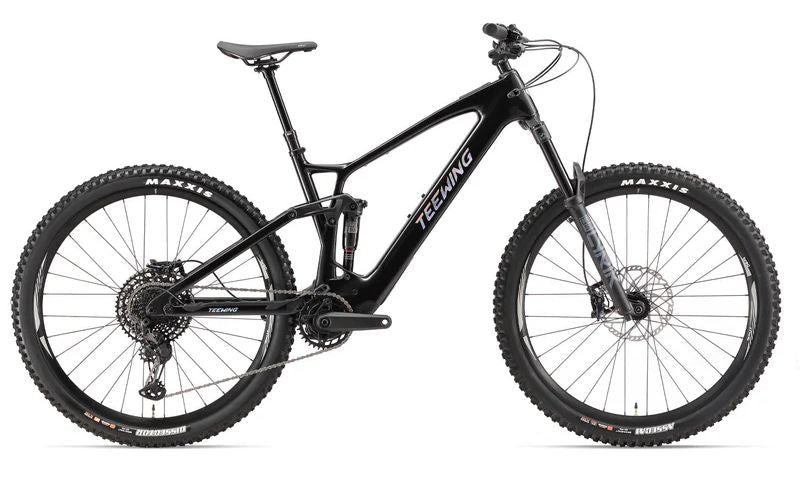

Frame: Teewing Turbo Force Carbon Frame, 29° rear wheels, 150mm rear travel

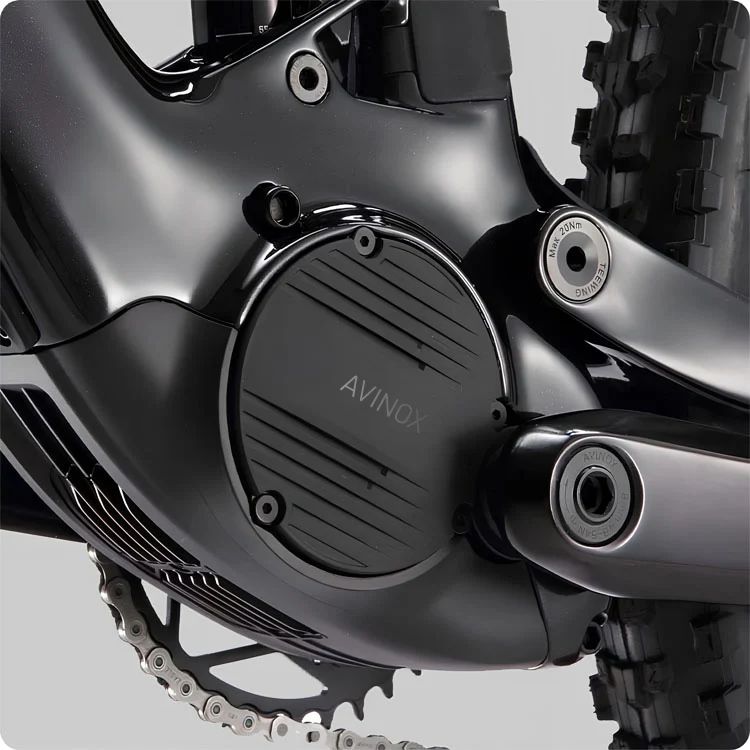

E-bike System: Avinox M1 Drive Unit: 105 Nm
Avinox Integrated Battery: 800Wh
Avinox Fast Charger: 4A/168W

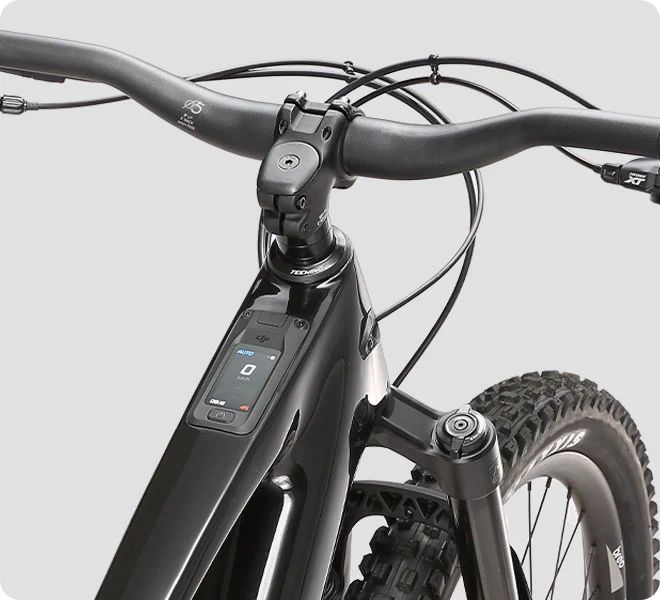

Avinox Screen: 2-inch OLED Control Display
Avinox Wireless Controllers: Right and left sides

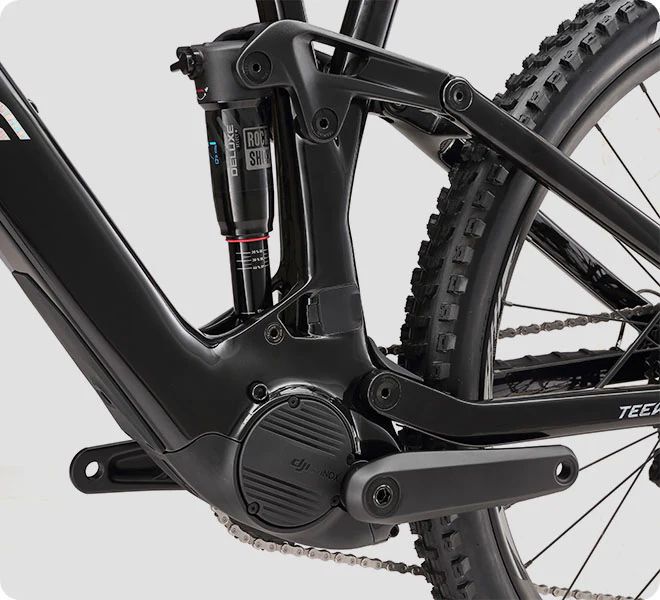

Rear Shock: Rockshox DELUXE SELECT+ 185×55mm, LINEAR AIR CAN

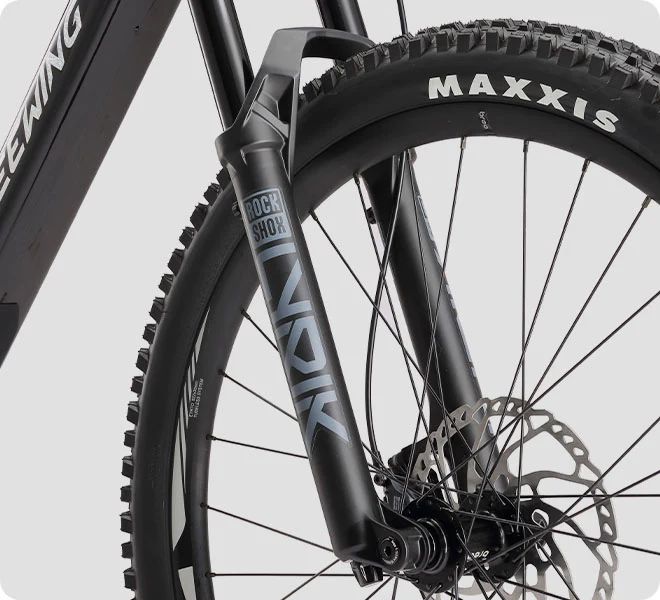

Fork: Rockshox FS LYRIK BASE 29" BOOST, 15X110mm, 160mm 44mm rake
Transmission:

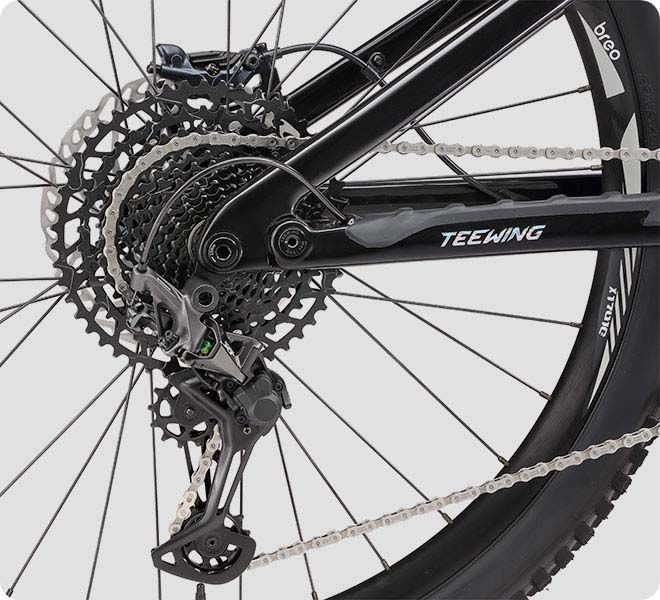

Rear Derailleur: Shimano XT M8100, long cage
Trigger: Shimano XT M8100, 12 speed
Chain: Shimano SLX CN-M7100, 120LINKS
Chainring: Prowheel FD04 BCD=104,11/128*36T,BED
Cassette: Shimano SLX M7100, 10-51, 12 speed
Crankset: Avinox SL Crank 160mm
Brakes: Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper, RT66 203mm rotors
Wheels: Breo-X1701E
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Tires:
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
Handlebar: Teewing Enduro AL7075-T6, 8-deg upsweep, 8-deg backsweep, 35mm rise, 800mm wide
Grips: VELO Enduro Grips
Stem: Teewing Enduro AL6061-T6, 35mm, Length: 40mm
Saddle: Selle Royal SRX Plus
Seatpost: EXA 31.6 31.6mm (L: 170mm, M: 150mm, XL: 190mm)
Weight: ca 21.8kg
colour: black
available sizes:, S, M, L, XL
very limited quantity available from DJI: DELIVERY IN APRIL 2026, only valid when preordered now, first come first serve, otherwise it will be sold out also for 2026 already!
